6510 CPU NOP Tester
This is a simple MOS 6510 CPU tester which executes NOP instructions.
The data bus pins are grounded and CPU executes NOP instructions in an endless loop from 0x0000 – 0xFFFF
Addresses A0 to A7 are connected to LED’s for visual display and will pulse on and off when the memory locations are checked.
The clock is driven by a 5Hz signal so address locations A0 – A7 are tested in 75 seconds.
Note, this is a simple CPU tester to just check that the CPU can execute instructions and does not test every function on the 6510

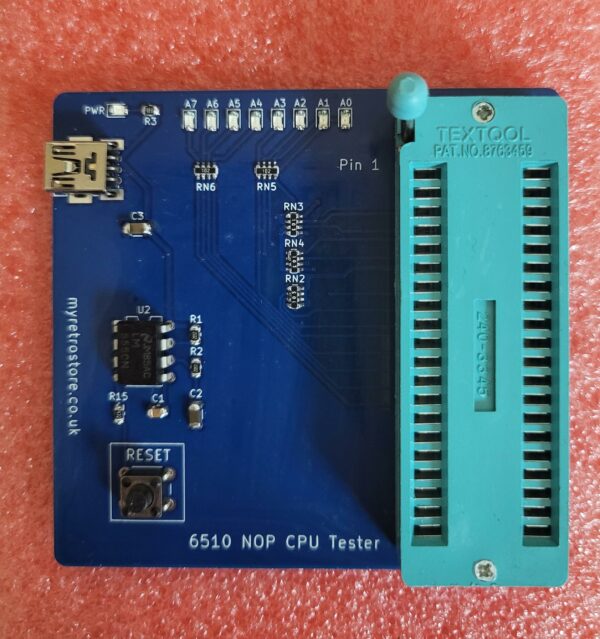

Make sure to insert the 6510 in the correct orientation (Pin 1 top left. See photo – 6510 not included)
Press test button to reset the CPU and start testing. (It’s common to see all address LED’s on after power up)
The device is powered by a USB Type B mini cable (not supplied).
