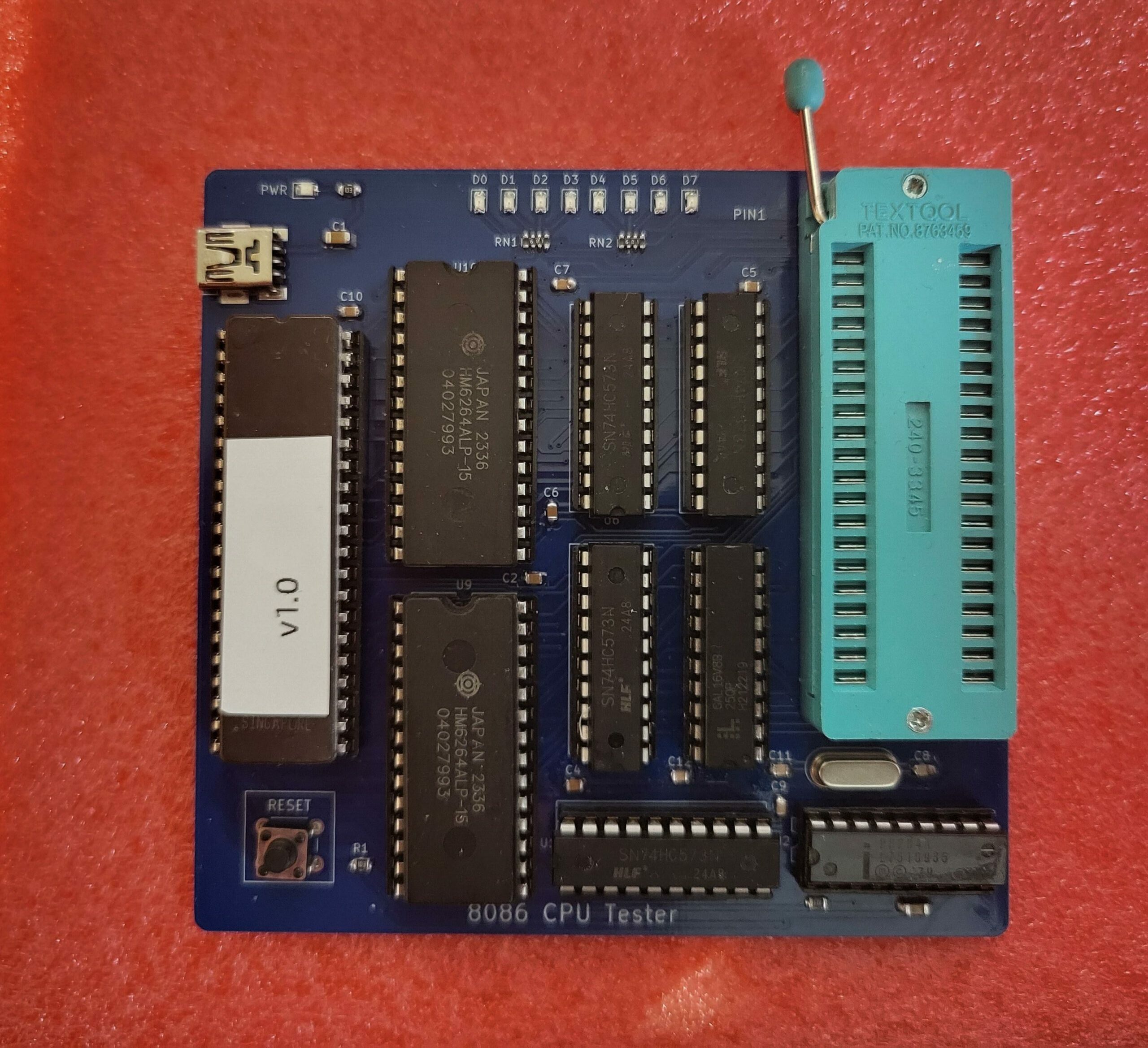

Intel 8086 CPU Tester
This tester is designed to check DIP-40 pin Intel 8086 CPUs.
While the tester does not test every function of the 8086, it verifies enough to ensure the CPU is working or faulty.
CPU Tests:
– Test all address and data lines
– Executes instructions from RAM/ROM, further verifying address and data line integrity.
– Performs read/write checks to RAM
– 8 Output LED’s are driven via an I/O mapped latch.
– CPU clock generated by an Intel 8284 clock generator chip.
Included:
1 x 8086 CPU Tester (The actual 8086 CPU is not included in the sale)
Usage:
- Insert the 8086 CPU into the ZIF socket and make sure the orientation is correct. (Pin 1 top left)
- Connect a mini USB Type B cable (Not supplied) from your PC (Or 5V USB charger) to the CPU Tester.
With a working 8086 CPU, the code executes from ROM, running tests and pulsing the 8 LEDs in a “Knight Rider” style sequence. This test repeats in a loop.
If the 8086 is faulty, the code may not start (so no LEDs light), or the display will freeze while pulsing through the LED’s.
See attached video for the output on a working 8086.
Each tester has been carefully assembled and tested to ensure proper operation before shipping.
Shipping:
Item will be shipped with Royal Mail Tracked 48.
