Apple II Dead Test ROM
This is a Dead Test ROM which performs RAM diagnostic tests for the Apple II computer.
The ROM software is written by Adrian Black and tests the RAM chips in the Apple II computer which does a far better job to diagnose faulty RAM than the internal Apple diagnostics.
The ROM can also be used as a F8 ROM Replacement (341-0004 – Integer BASIC F8)
Includes:

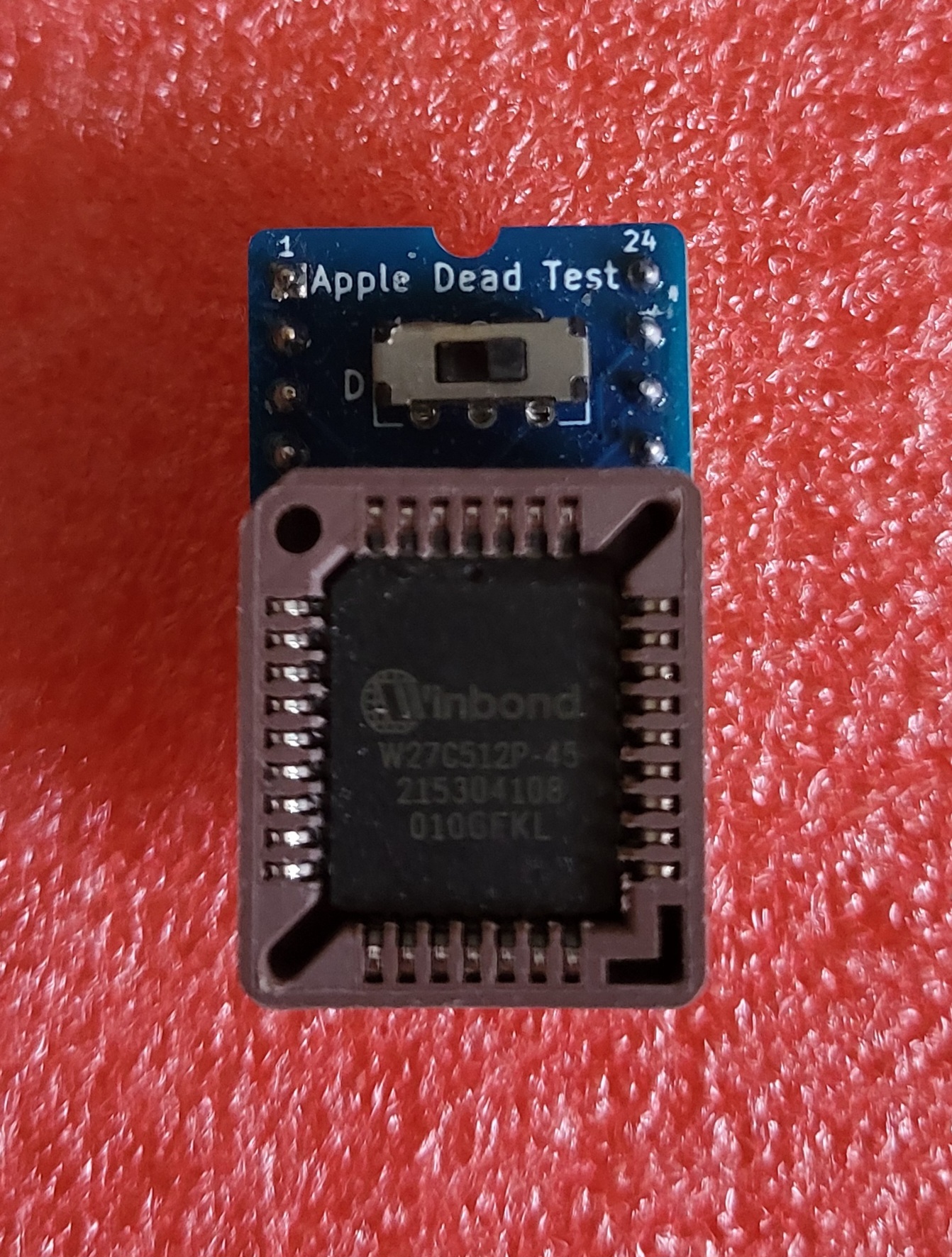

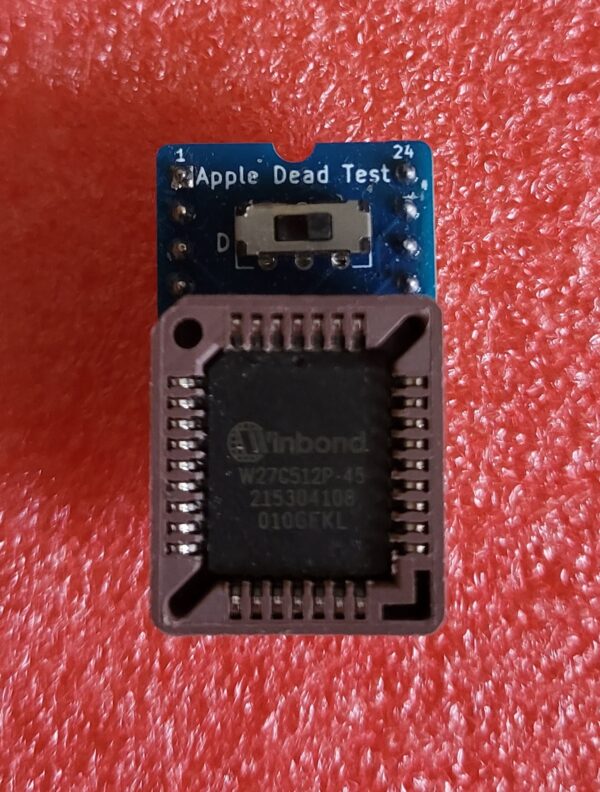

1 x Apple II Dead Test / 341-0004 ROM
Usage:

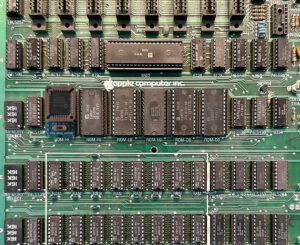

– Remove the F8 ROM from your Apple and note the orientation
– Carefully install the diagnostic ROM in it’s place taking care to get the orientation correct.
With the switch set to D (Disabled) the ROM will act like a 341-0004 ROM.
With the switch not disabled the Dead Test ROM will be selected.
Switch on the Apple computer and you should hear a BEEP and the diagnostic tests will start.
More information on using the ROM can be found here
