MPS6540 Adapter
MPS6540 ROM Adapter for Commodore PET 2001 computers.

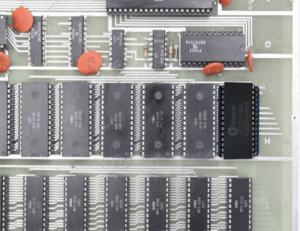

The MPS6540 is a obsolete ROM chip used in the Commodore PET computers. This adapter allows you to replace the MPS6540 ROM with a standard 27XXX EPROM.
All the chip select lines are implemented and not hard wired so this adapter acts like a real 6540 ROM.
Included is a W27C512 chip. The adapter supports any ERPROM like the 2716, 2764, 27256, 27512. The W27C256 is included as it is electrically erasable with a suitable programmer like the TL866 or T48.
Included:

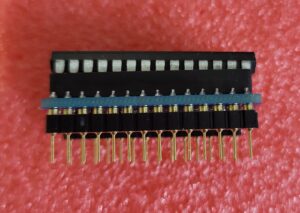

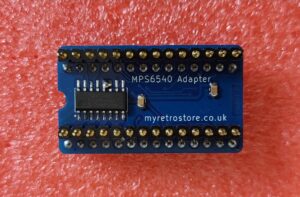

– MPS6540 Adapter

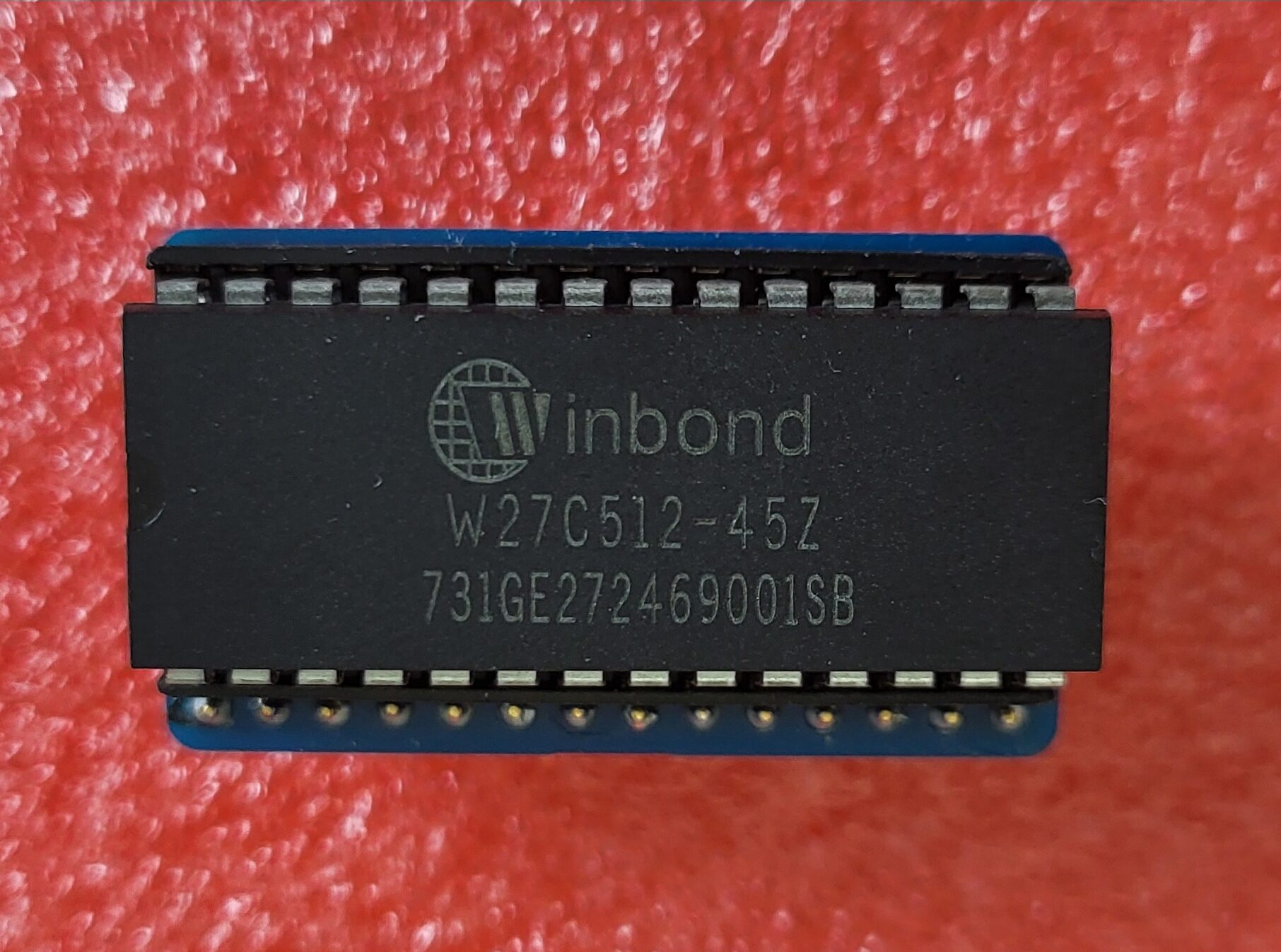

– W27C512 ROM (Blank)
Dimensions:
Height: 15mm
Length: 37mm
Width: 22mm
If you want me to program the ROM for you please contact me and let me know the exact ROM model number you want programmed. (Otherwise the ROM supplied will be blank)
When replacing the ROM make sure you have the correct orientation.
Take care when inserting the ROM so as to not bend the pins.
